Technical Specification

Temperature range : 20°C to 60°C Accuracy ≤ +/- 0.2°C Uniformity ≤ +/- 1.0°C*
Rel. Humidity : range : 40%RH to 90%RH Accuracy ≤ +/- 1.0% Uniformity ≤ +/- 3.0%*

Standard equipment's operating conditions

25°C / 60%RH   30°C / 65%RH   40°C / 75%RH   30°C / 75%RH


Standard equipment's operating conditions

25°C / 40%RH   30°C / 35%RH   40°C / 25%RH


ad pharma
Models Capacity Internal size in MM External size in MM Rack Qty Tray Qty Tray size in MM Connected Load
AD/WSC-400 4000 2000Wx1000Dx2000H 2160Wx1600Dx2200H 4 10 740Wx625Dx30H 4.0 KW
AD/WSC-600 6000 2000Wx1500Dx2000H 2160Wx2100Dx2200H 4 20 600Wx625Dx30H 4.25 KW
AD/WSC-800 8000 2000Wx2000Dx2000H 2160Wx2600Dx2200H 4 20 850Wx625Dx30H 4.25 KW
AD/WSC-1000 10000 2000Wx2500Dx2000H 2160Wx3100Dx2200H 6 30 725Wx625Dx30H 4.25 KW
AD/WSC-1200 12000 2000Wx3000Dx2000H 2160Wx3600Dx2200H 6 30 890Wx625Dx3OH 4.25 KW
AD/WSC-1600 16000 2000Wx4000Dx2000H 2160Wx4600Dx2200H 8 40 900Wx625Dx3OH 5.5 KW
AD/WSC-2000 20000 2000Wx4000Dx2500H 2160Wx4600Dx2700H 8 48 900Wx625Dx3OH 6.0 KW
AD/WSC-2500 25000 2300Wx4500Dx2500H 2460Wx5100Dx2700H 10 60 815Wx750Dx30H 6.0 KW
AD/WSC-3000 30000 4000Wx3000Dx2500H 4160Wx3600Dx2700H 12 84 890Wx625Dx30H 9.0 KW
AD/WSC-4000 40000 4000Wx4000Dx2500H 4160Wx4600Dx2700H 16 96 900Wx625Dx30H 9.0 KW
AD/WSC-5000 50000 4500Wx4500Dx2500H 4660Wx5100Dx2700H 20 120 820Wx725Dx3OH 12.75 KW

* Measured with high accuracy data-logger at sample storage area with standard Set Point.

Custom built Chambers are available in any dimensions and capacities.


Standard Features

Panel Construction

Tongue and groove type PUF insulated sandwich panel with cam lock. The Equipment interior is constructed with stainless steel 304 grade finish-4 and exterior is constructed with pre coated GI sheet/ stainless steel 304 grade finish-4.

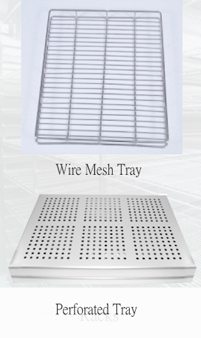

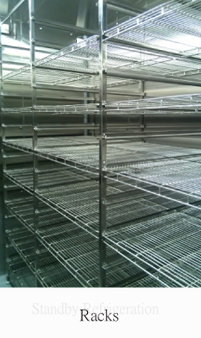

Tray and Rack

Duly electro polished stainless steel wire mesh tray and heavy duty square pipe rack with adjustable tray location.


Door

Heavy duty toughened double glass door installed with imported hinges and lock for easy operation.

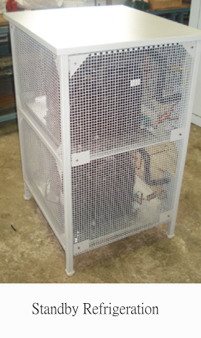

Backup System

Equipment is installed with PLC based auto change over backup system for Refrigeration system and Steam Generator system.


PLC based control system

Advanced PLC program with built-in Auto-Tuning, PLC Processor based computing and Interactive Easy-to-Use HMI.


Documentation
